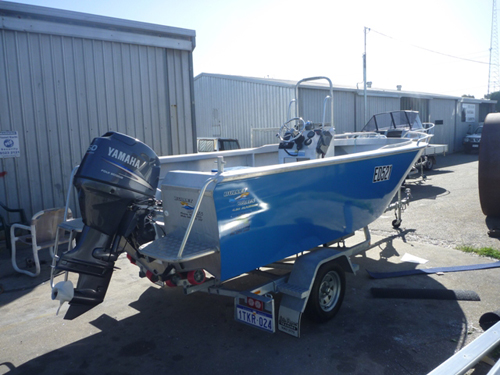

4.85m Magnum

A deep sided (Free board) and highly sort after style for the Kimberley Region, this boat is highly capable in varied ocean conditions

Built tough with sealed decks (Foam filled) compliant with Australian builders plate standards (AS1799)

An integrated wet sump spill void at the transom keeps the deck dry and can be drained on the go or even filled at rest as a kill tank

The 4.85 comes highly recommended in centre console version, being the most preferred option the majority of fishing skippers use today

The complete package is negotiable to give you tailor made options to fit your needs, for example adding seat boxes or more storage compartments

This boat size is currently being used as a Skippers Ticket Trainee vessel and as constantly remarked “works very well and is so user friendly compared to other boats in its size


4.85m Magnum

  • Sealed decks (Foam filled)
  • Plate size = 4 mm Hull and 4 mm sides
  • 90 L maximum fuel tank
  • Beam = 2150 mm (wide)
  • Dead rise = 14 degrees
  • Approx dry vessel weight = 450 Kg
  • Recommended Power plant = 90 HP


 All of our vessels are built out of 5083 marine grade Aluminium Sheet metal

With Full Frames and 6000 series stringers which run perpendicular to the Hull (max 250mm apart).

The unique Reverse Chine gives our Boats a very Responsive and Stable Tracking Character which combats Broaching.

At Rest the chines act like Sponsons and Retards Listing to a very comfortable point ( A big win with Hard Core Fishos).

All of our Vessels Can be Custom built as long as they stay within the Parameters of the Australian Builders Plate Standards.

All our Boats under 6.1 mtrs have Microlin Foam as positive Buoyancy Aid (Aus Builders Plate)

We provide Hinn Numbers and Optional Fit out requirements.

Primarily A Raw finish with all Pre cut and drilled requirements our vessels will be ready for fit out at the arranged ETA for the owner builder.

Our optioned full finished vessel can be Quoted for (under Contract) with Paint, windows ,Electrics, Carpets , Upholstery ,stickers and all varied BLA products (see online).
